[Issue#168] Inch mode support.

#1 – AustinSaintAubin 于 2017-06-09

Its would also be nice if it also converted the probing increments, and maybe even the macro’s, as well.

#2 – cheton 于 2017-06-10

For your first question, there is a mouseover tooltip that shows the current unit of the increment button. The user input value will be updated when switching between G20 (inches) and G21 (mm). For example, 0.5 in <-> 12.7mm.

G20 inches mode

!2017-06-10 17 02 39

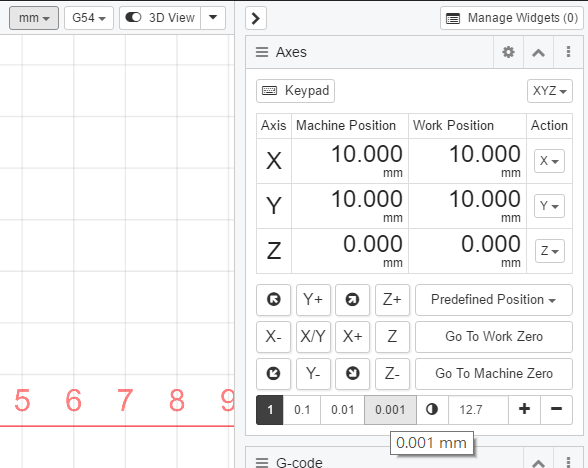

G21 mm mode

!2017-06-10 17 02 44

I can add units aside the number so it will be visible to users.

—

Second, there are some differences between Grbl controller and TinyG controller in CNCjs:
* The Grbl controller will send a software reset (ctrl-x) after running a file, so it will always force changing the units mode to G21 (mm).
“js
'gcode:stop': () => {
this.event.trigger('gcode:stop');
this.workflow.stop();
const activeState = _.get(this.state, 'status.activeState', '');
const delay = 500; // 500ms
if (activeState === GRBLACTIVESTATE_RUN) {
this.write(socket, '!'); // hold
}
setTimeout(() => {
this.write(socket, '\x18'); // ctrl-x
}, delay);
}
`

* For TinyG controller, I didn't send a software reset, only queue flush and clear commands are sent once a job has finished:
`js
'gcode:stop': () => {
this.event.trigger('gcode:stop');
this.workflow.stop();
this.writeln(socket, '!%'); // feedhold and queue flush
setTimeout(() => {
this.writeln(socket, '{clear:null}');
this.writeln(socket, '{"qr":""}'); // queue report
}, 250); // delay 250ms
}
`

Your suggestion is good, I can add configuration options that allows user to specify preferred units after running a file. For example:
`
Change the units after running a file:
[ ] Leave it as is
[ ] Revert changes to the previous units
[ ] Specify the units you want to use: G20 or G21
“

#3 – cheton 于 2017-06-10

> Its would also be nice if it also converted the probing increments, and maybe even the macro’s, as well.

@AustinSaintAubin
The user input value in the Probe widget will be updated when switching between G20 and G21, what did you mean for “converted the probing increments”?

#4 – tomauga 于 2017-06-10

This looks great Cheton. Thanks!

#5 – cheton 于 2018-02-03

Made some improvements to the axes widget in CNCjs 1.9.13, you will know the units that’s currently used.

!image
