[Grbl_Esp32 PR#519] FIx the I2S stream generates a 3x faster pulse.

未分类 bolang 4个月前 (10-14) 57次浏览

Issue #519 | 状态: 已关闭 | 作者: odaki | 创建时间: 2020-08-08


Phenomenon
With the I2S stream enabled, the motor moves about three times as fast as the RMT step.

Reproduce steps:

1. change parameters for reproduce
$Stepper/Pulse=5
$Stepper/IdleTime=255
$X/StepsPerMm=5120.000
$X/MaxRate=1000.000
$X/Acceleration=1.000
$X/MaxTravel=300.000
2. move X axis 1 mm with F500
G0X1F500

The expected processing time is about 2.037s.
The actual processing time is about 0.75s, which is about three times faster.

Root cause
I completely misunderstood the calculation of the interruption interval.
I had assumed that the alarm_val used in the interrupt setting was μs/min.
The actual units were ticks/interupt.

For example (alarm_val = 32,549):
Correct value
1 / 20,000,000 * 32,549 = 0.00162745 s/int

Incorrectly calculated value(Approximately 1/3 of correct value):
32,549 / 60 / 10,000,000 = 0.00054248 s/int

Fix
Change to calculate the correct μsec interval from the tick value.
After the fix, I2S steps now generate a pulse similar to RMT steps when using I2S streams.

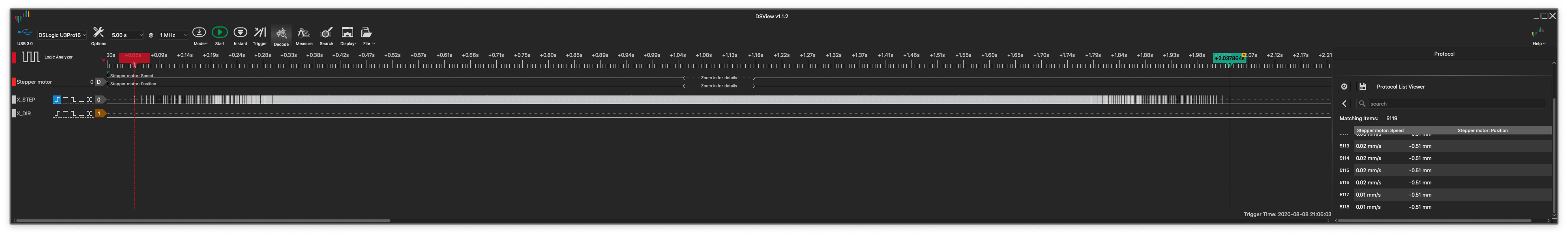

RMT steps:
!RMTPLW4IDL255_G0X1F500

I2S stream steps:
!I2SSTREAMPLW5IDL255G0X1F500

Acknowledgments
I would like to thank jesse schoch and William Curry for reporting on the issue.
I also thanks Mitch Bradley and Bart Dring for their help in investigating the cause of the problem.
