[grbl Issue#1257] Problem with Y axis during arcs engraving

未分类 bolang 6个月前 (10-14) 39次浏览

Issue #1257 | 状态: 已关闭 | 作者: Sceeker | 创建时间: 2017-06-28


Hello !
I recently finished building my first engraving machine, it works well, especially when engraving rectangular shapes.
But when I try to engrave a circle or a round letter, such as a “O” I get this:

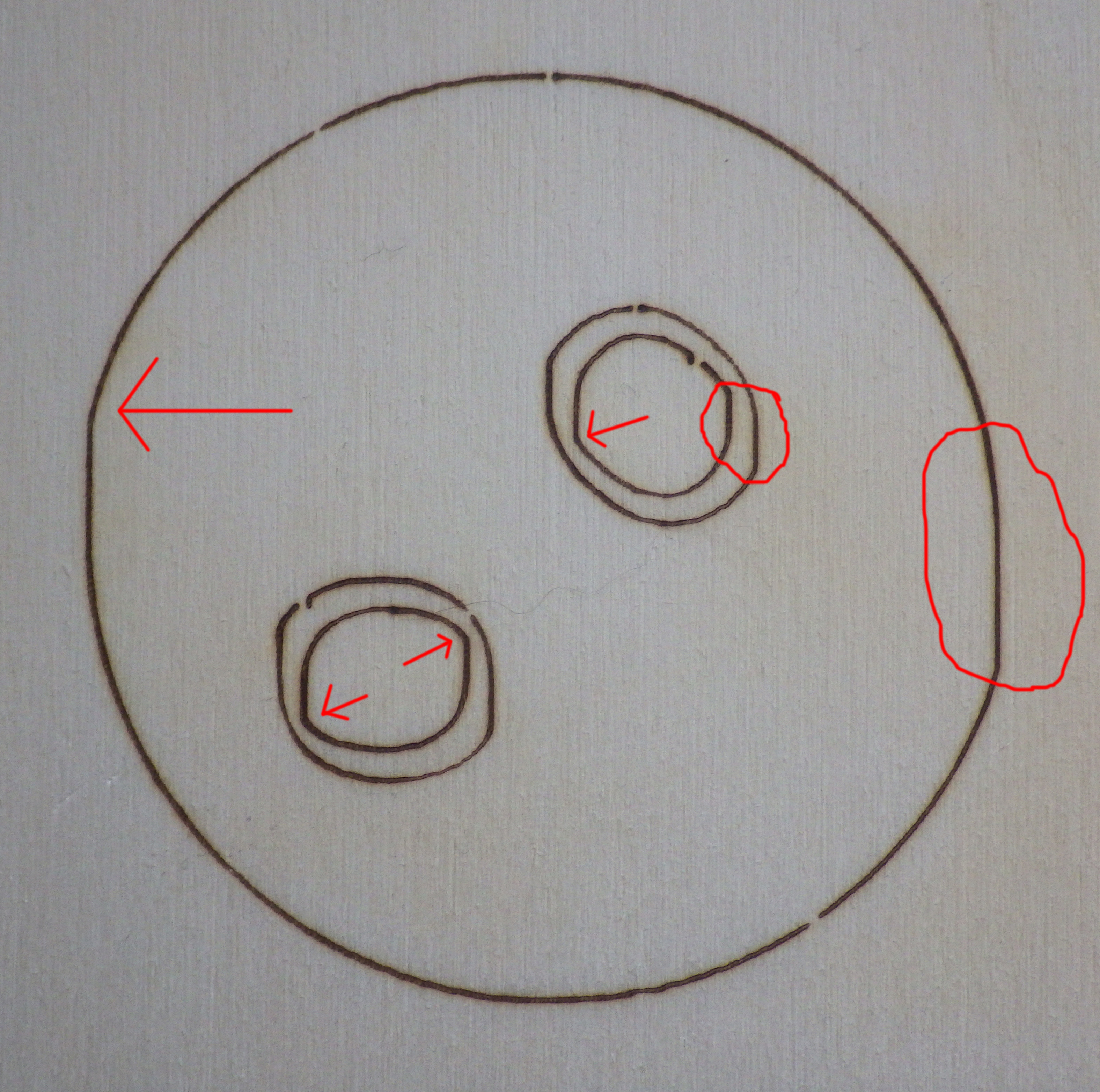

!rimg0786

The problem comes the Y axis which is too slow to start moving in the opposite direction.
And while the Y axis is static, the X axis continues to move so I obtain straights lines (as shown inside the red circles) and edges (as shown by the arrows).

Is there a way I can fix this ?
I did my best to explain my problem but there might be some english errors since it’s not my native language.
Thanks you for reading.


评论 (2)

#1 – electrokean 于 2017-06-28

This is caused by mechanical backlash


#2 – Sceeker 于 2017-06-28

Thank you, I’ve found where the backlash is.
Since I used a scanner for the Y axis the stepper motor has a gearbox, and it’s where the backlash is.
I think the only solution now is to try to use another stepper motor.


原始Issue: https://github.com/grbl/grbl/issues/1257
